Our Work
A sample of what we've fabricated.
Every piece here was built to a custom specification. No two jobs are quite the same — these are a few examples of the mirrors, flats, and cylinders that have come off our line.

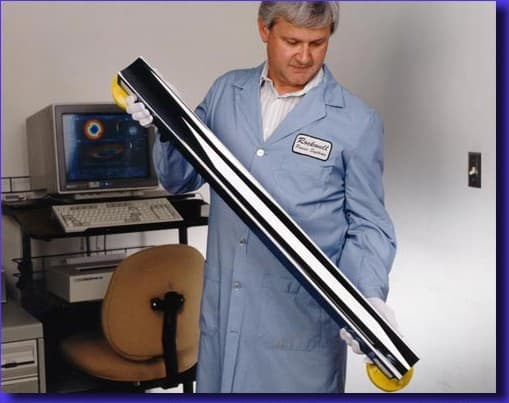

1 Meter Long Internally Water-Cooled Silicon Conical Tangential Bendable Mirror
A full meter-long bendable mirror on a silicon substrate, internally water-cooled to manage thermal load under high-power beams.

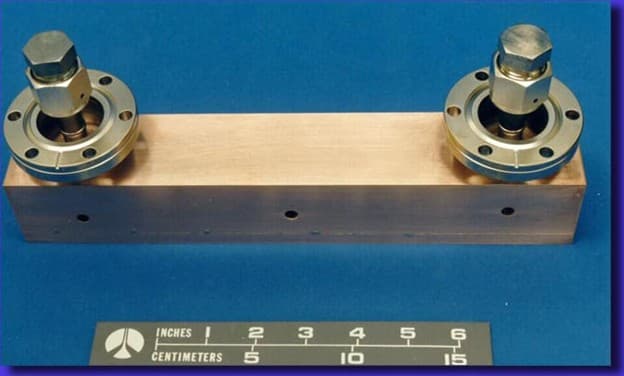

300mm Long Assembled GlidCop Internally-Cooled Mirror
A compact internally-cooled mirror with cooling mounts assembled directly to the GlidCop® substrate.

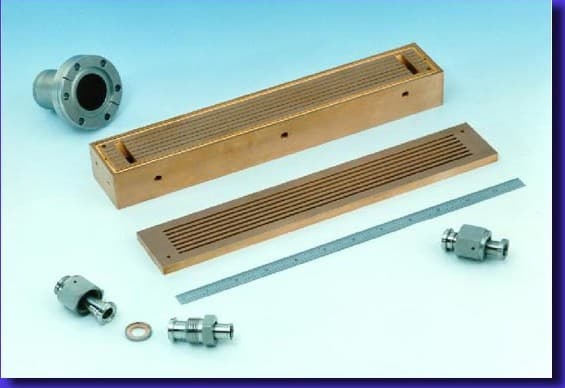

Water Fittings & GlidCop Heat Exchanger Detail
A closer look at the internal cooling channels, fittings, and heat exchanger machining behind a 300mm cooled mirror.
1 Meter Long Internally Water-Cooled Silicon Tangential Bendable Mirrors
A matched pair of meter-long bendable mirrors, fabricated and finished to the same tolerance.
310mm Long Internally-Cooled Silicon Mirror
A compact internally-cooled silicon mirror with mounting hardware and cooling connections.

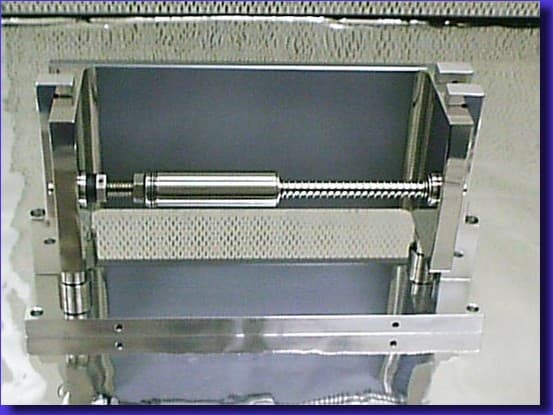

9″ Long Silicon Bendable Mirror
A short-aperture bendable mirror with benders mounted directly to the optic for active figure control.

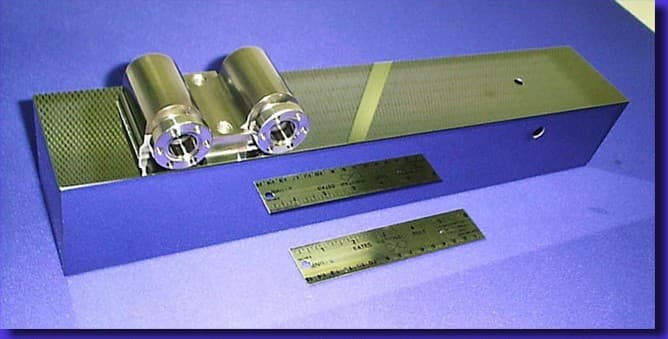

450mm Long Internally-Cooled Silicon Mirror
A mid-length internally-cooled mirror with integrated water fittings.

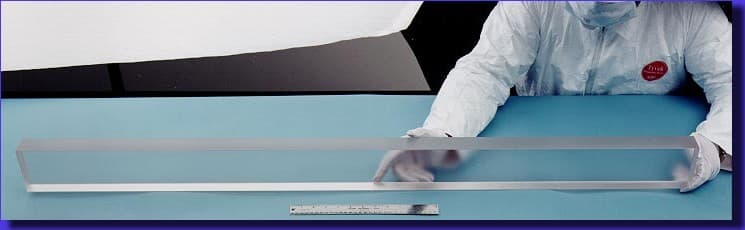

1.4 Meter Long ULE™ Flat
A large-aperture ULE™ flat, handled and inspected under cleanroom conditions.

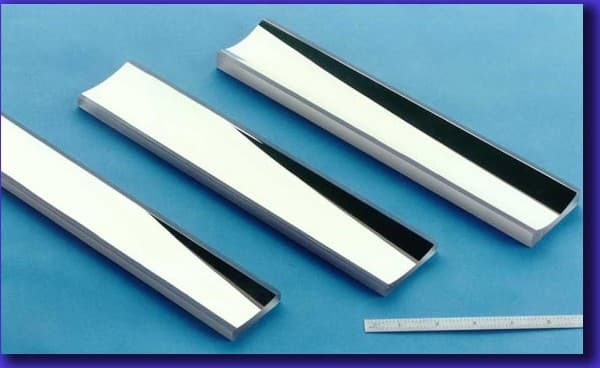

300mm Long ULE™ Sagittal Cylinders
A graduated set of matched sagittal cylinder optics, polished to the same super-polished finish.
